| Size (discharge) | 2″ – 8″ | Capacity | 4-700 M3/h |
|---|---|---|---|
| Head | 5m-30 M | Solid Handling | Max 70mm |
| Material | Rubber Or Wear Resisting Alloy |
ZF series froth pumps are double casing pump belongs to a type of vertical slurry pump. It could eliminate the froth in the slurry in running and work normally even if the feeding slurry is not enough.
ZF pump is the ideal products to deliver the frothy slurry, especially in the flotation technique process.
Mineral processing often relies on the formation of froth to separate rich minerals from gangue. In the process chemicals and air are mixed. The rich minerals entrap the air and move as bubbles to the top of a flotation cell while sand and clays of no commercial value sink to the bottom to form tailing. Vertical Centrifugal Mineral Processing Froth Pump belongs to our ZF series slurry pump, which is designed for slurry containing froth and pulp.

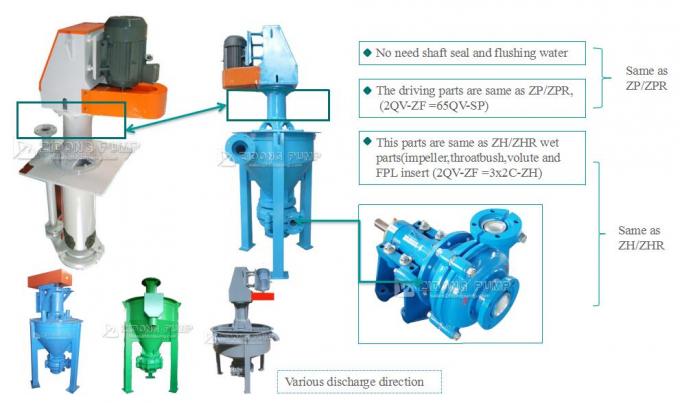

• Submerged in liquid, delivering abrasive & corrosive slurry which contains froth.

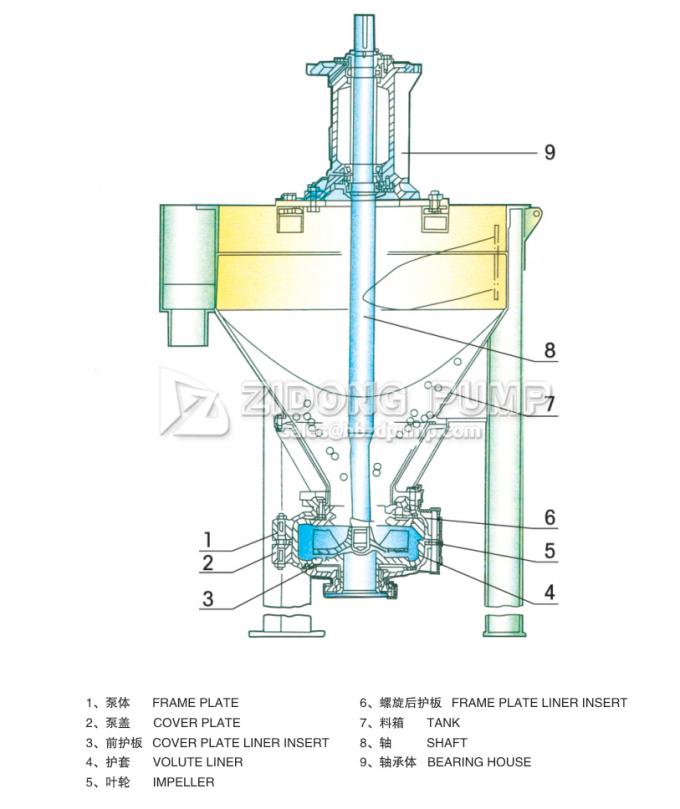

• Double casing structure
• No shaft seal and flushing water
• The parts immersed in liquid can be wear resistant metal or rubber
• Easy to maintain alarm.

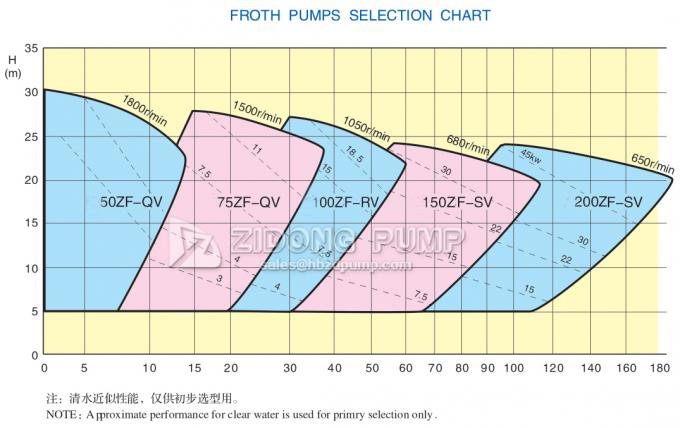

| Model | Flow Rate | Head | Speed | Efficiency | Max Solid | Max Power | Suction Diameter | Discharge Diameter |
| (L/s) | (m) | (r/min) | (%) | (mm) | (kW) | inch | inch | |
| 50QV-ZF | 1.2-14.2 | 6.2-30.2 | 800-1800 | 20-45 | 35 | 15 | 4 | 2 |
| 75QV-ZF | 3.0-41.5 | 6.5-29.5 | 700-1500 | 20-55 | 38 | 20 | 6 | 3 |
| 100RV-ZF | 3-59 | 6.8-29.2 | 500-1050 | 20-55 | 55 | 40 | 6 | 4 |
| 150SV-ZF | 10-118 | 6.8-25.2 | 350-680 | 20-55 | 63 | 75 | 8 | 6 |
| 200SV-ZF | 64-186 | 5-24.8 | 350-680 | 20-55 | 70 | 110 | 10 | 8 |

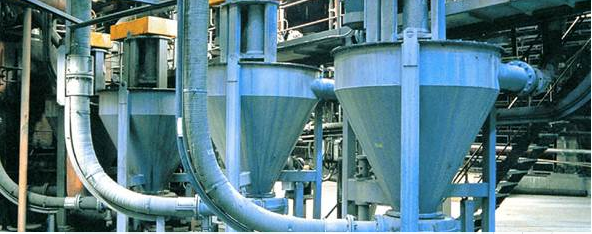

ZF series of forth pump is widely used in metallurgy, coal, chemical,industrial sector. It is suitable for conveying abrasive slurry containing bubble, the series pump can effectively eliminate the bubble in the slurry at work.
• Iron Ore Dressing Plant
• Copper Concentration Plant
• Gold Mine Concentration Plant
• Molybdenum Concentration Plant
• Potash Fertilizer Plant
• Other Mineral Processing Plants
• Other industries
